Detailinformationen |
|||
| Grad: | AISI 430 / UNS S43000 / SUS430 | Typ: | Ferritisches Edelstahlblech mit PVC-Schutz |
|---|---|---|---|
| Dicke: | 0.5 mm - 2,0 mm | Standardgröße: | 1219 x 2438 mm, 1500 x 3000 mm, kundenspezifisch |
| Oberflächenbeschaffenheit: | 2B, BA, Nr. 4, 8K-Spiegel, HL-Haaransatz | Filmdicke: | 60–80 Mikron (Standard), 100 Mikron (Hochleistung) |
| Filmfarbe: | Transparent, Blau, Weiß, Schwarz (Benutzerdefiniert) | Anwendung: | Architektur, Dekoration, Aufzug, Küchenausrüstung |
| Technik: | kaltgewalzt | Schutzdauer: | Bis zu 3 Monate im Freien, 6 Monate im Innenbereich |
| Hervorheben: | PVC Coated 430 Stainless Steel Sheet,Laser Film Protected 430 Plate,Surface Protection 430 SS Sheet |
||
Produkt-Beschreibung

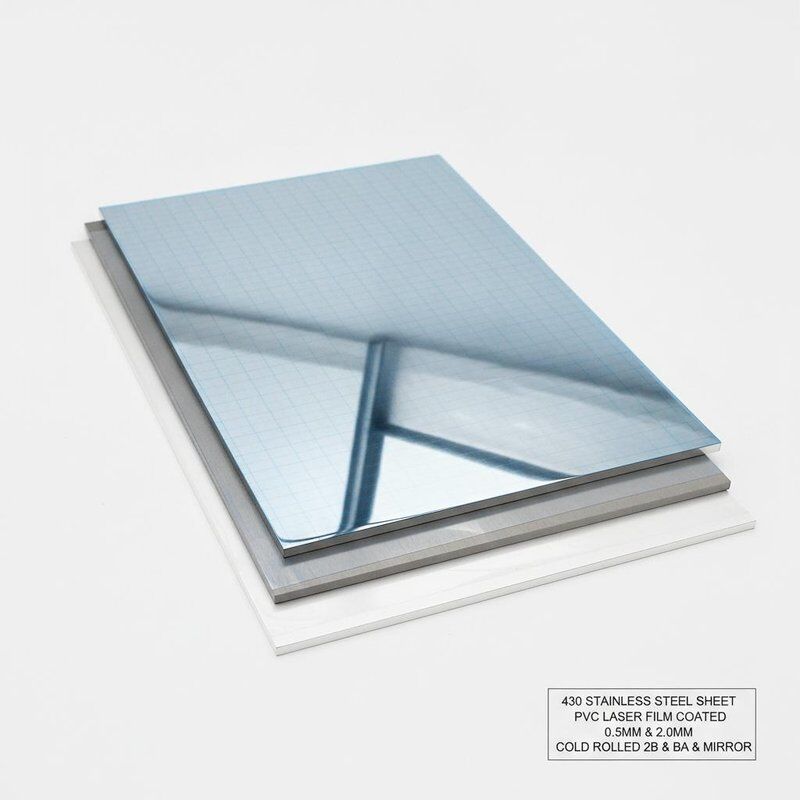

430 Stainless Steel Sheet PVC Laser Film Coated Surface Protection 0.5mm 2.0mm Cold Rolled 2B BA Mirror
PVC Laser Film Protected 430 Stainless Steel Sheet
This 430 stainless steel sheet is supplied with a premium PVC laser-grade protective film applied to the surface, ensuring the material arrives at your production line in flawless condition. The protective coating prevents scratches, abrasion, contamination, and handling marks during transport, storage, laser cutting, bending, and installation processes.
Protective Film Specifications
- Film Type: Laser-grade PE/PVC protective film (60-80 micron thickness)
- Adhesion Level: Medium-low tack — clean peel-off without residue
- UV Resistance: Film remains stable under UV exposure during outdoor storage (up to 3 months)
- Laser Compatibility: Film is certified for CO2 and fiber laser cutting without melting or burning residue
- Temperature Resistance: Withstands bending and mild forming operations without peeling
- Custom Printing: Optional logo or specification printing on film surface available
Available Surface Finishes
- 2B Finish: Smooth, cold-rolled, annealed and pickled — matte grey appearance, suitable for further processing
- BA Finish (Bright Annealed): Mirror-like reflective surface — ideal for decorative and visible applications
- No.4 Finish: Brushed satin finish with short parallel polishing lines — architectural standard
- 8K Mirror Finish: High-reflectivity polished surface — premium decorative grade
- HL Hairline Finish: Continuous long grain polishing lines — elevator and escalator panels
Key Benefits
- Zero Surface Defects: Eliminates costly rework and scrap from handling damage
- Fabrication Ready: Film stays on during laser cutting, CNC punching, and bending — peel off only at final assembly
- Time Savings: No need for post-fabrication polishing or re-finishing
- Cost Reduction: Reduced rejection rates and material waste in production
Technical Specifications
| Grade | AISI 430 / UNS S43000 / DIN 1.4016 |
|---|---|
| Chromium Content | 16.00 - 18.00% |
| Thickness Range | 0.5mm - 2.0mm |
| Standard Size | 1219 x 2438mm (4x8 ft), 1500 x 3000mm |
| Surface Finish | 2B, BA, No.4, 8K Mirror, HL Hairline |
| Film Thickness | 60-80 micron (Standard), 100 micron (Heavy Duty) available |
| Technique | Cold Rolled |
Packaging
Film-protected sheets are additionally interleaved with kraft paper, stacked on fumigated wooden pallets, and secured with steel strapping and edge protectors. Exported in 20ft or 40ft containers with moisture-proof wrapping.
Contact us now to request samples of all available finishes with protective film. OEM logo printing on film available for volume orders.
